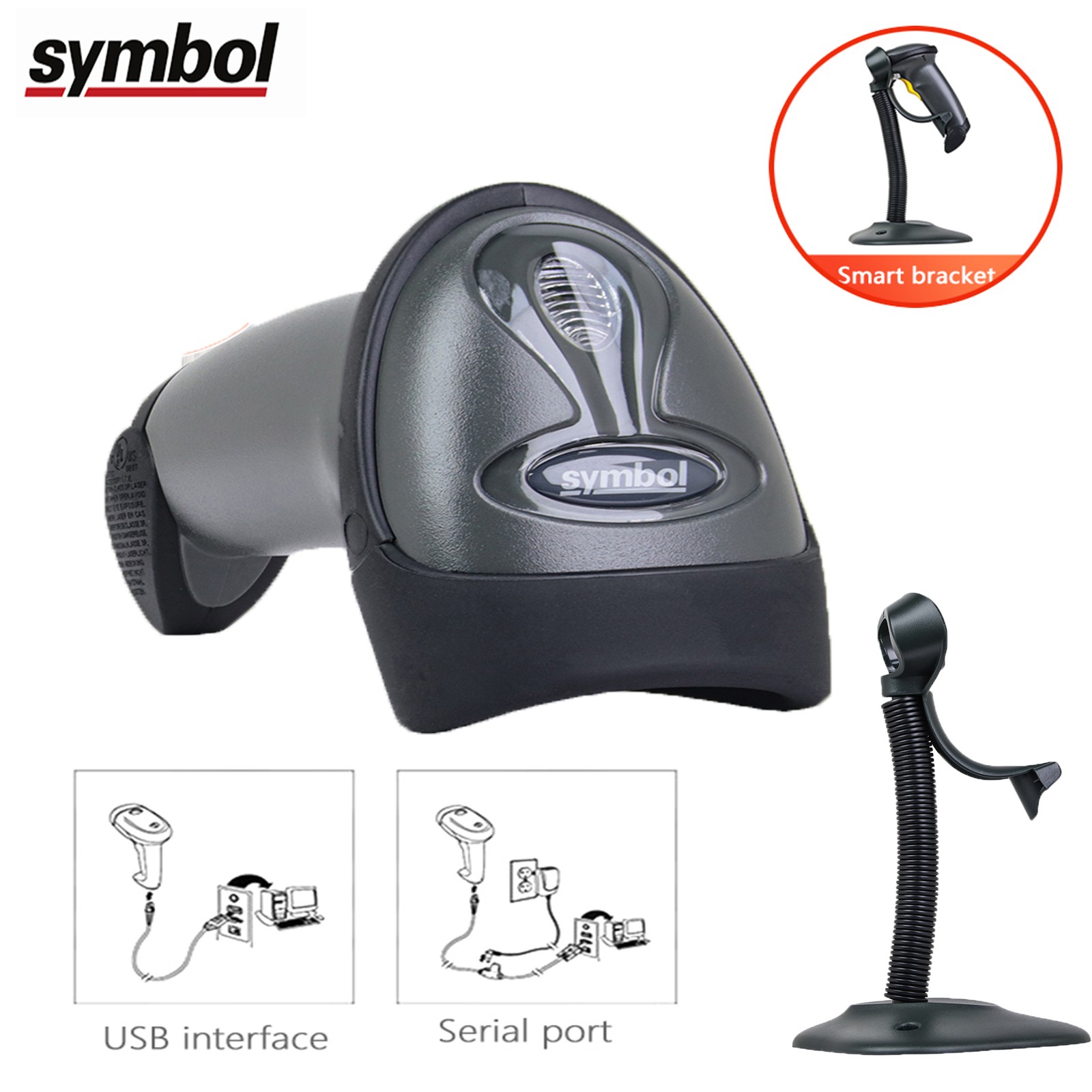

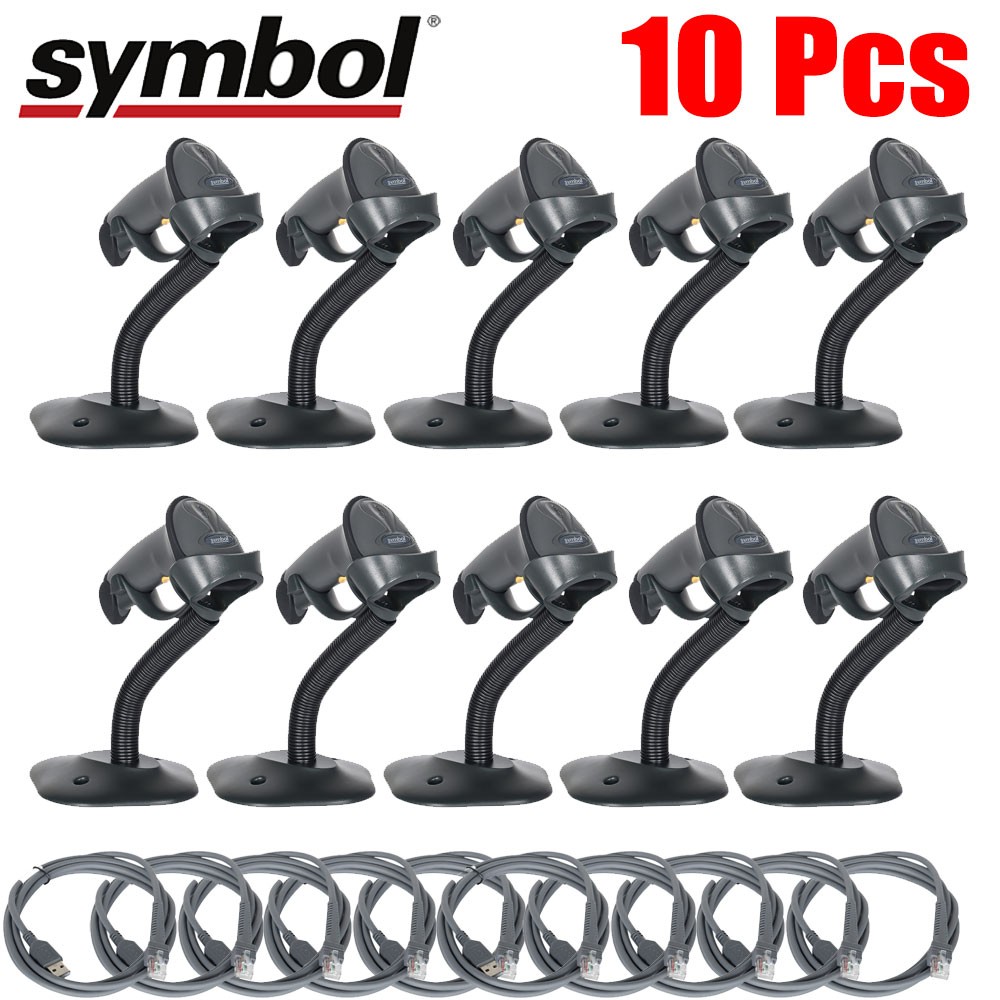

Zebra Symbol Ls2208-sr20007r-na 1d Barcode Scanner

Description:

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems

Durable, single-board construction

Meets stringent 5-ft drop tests.

Scratch-resistant tempered glass exit window

Is designed for continuous use.

Accurate first-time capture of 1D bar codes

Increased productivity, resulting in shorter check-out lines and better customer service.

Wide working range

Delivers optimal performance from contact to 17 in (43 cm).

Multiple on-board interfaces

Simplify installation and integration and ensures future compatibility.

Plug-and-play, with universal cable

Means rapid deployment, with a single cable connecting to any computing environment.

Intuitive design

Minimizes setup and training time.

Ergonomic, lightweight design

Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.

Hands-free Intellistand

Enables presentation scanning and easy switching between hands-free and handheld modes.

Advanced Data Formatting (ADF)

Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.

Specifications:

DesignProduct colour

Black

Operational conditionsOperating relative humidity (H-H)

5 - 95 %

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Other featuresDimensions (WxDxH)

63 x 84 x 152 mm

Electromagnetic emissions

FCC Part 15 Class B, ICES 003 Class B

Light source

650nm

Safety

UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Package dimensions (verified)Depth Verified

12.6 cm

Gross Weight Verified

0.24 kg

Height Verified

7.6 cm

Width Verified

18.3 cm

PerformanceProduct colour

Black

Ports & interfacesStandard interfaces

RS-485, USB, Keyboard wedge, RS-232

PowerInput voltage

5 V

Power consumption

130 mA

Product dimensionsDepth (product,cm)

17.8 cm

Height (product,cm)

7.6 cm

Net Weight (Product, kg)

0.23 kg

Product Width

12.6 cm

ScanningDecoding standards

UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2 of 5

Pitch reading angle

-65 - 65 °

Scan speed

100 sec/page

Sensor type

Laser

Tilt reading angle

-30 - 30 °

Yaw reading angle

-60 - 60 °
